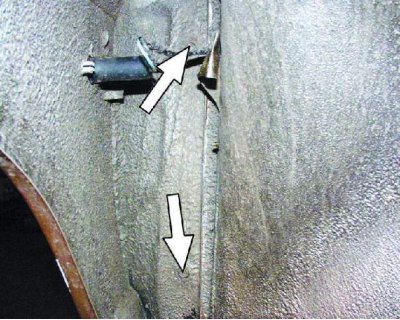

Note. To gain access to the front wing mount bolt, you can leave the front buffer in place. It is enough to unscrew the two nuts of the side fastening of the buffer and squeeze out the end of the buffer.

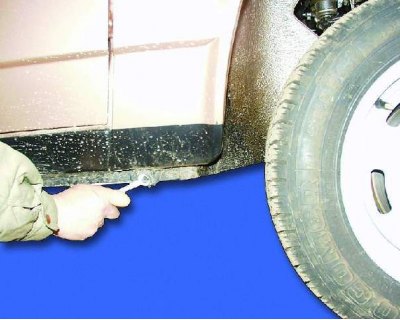

1. Through the wheel niche, remove the cartridge with the lamp from the turn signal repeater and unscrew the two bolts of the rear wing mounting.

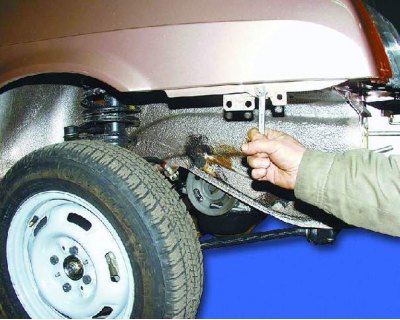

2. Loosen the bottom wing bolt.

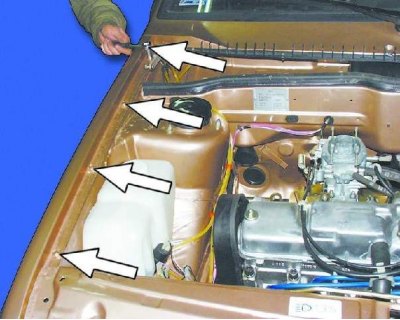

3. Remove the front bumper and remove the front wing bolt.
4. Remove the four top mounting bolts and remove the fender.
5. Clean the surface mating with the wing on the body. Install the new fender by replacing the top and rear gaskets. Align the fender with gaps and protrusions with the rest of the body panels before final tightening of the mounting bolts. After installing the wing, we recommend sealing the joint between the wing and the mudguard with sealant so that dirt and moisture do not get into it.
